-FEATURES-
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, up to 5600(MAX) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost : Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience : PCIe 4.0
- Audio Boost : Reward your ears with studio grade sound quality
- Steel Armor : Protecting VGA cards against bending and EMI for better performance, stability and strength.
-SPECS-
Warranty : 3 years
Brand : MSI

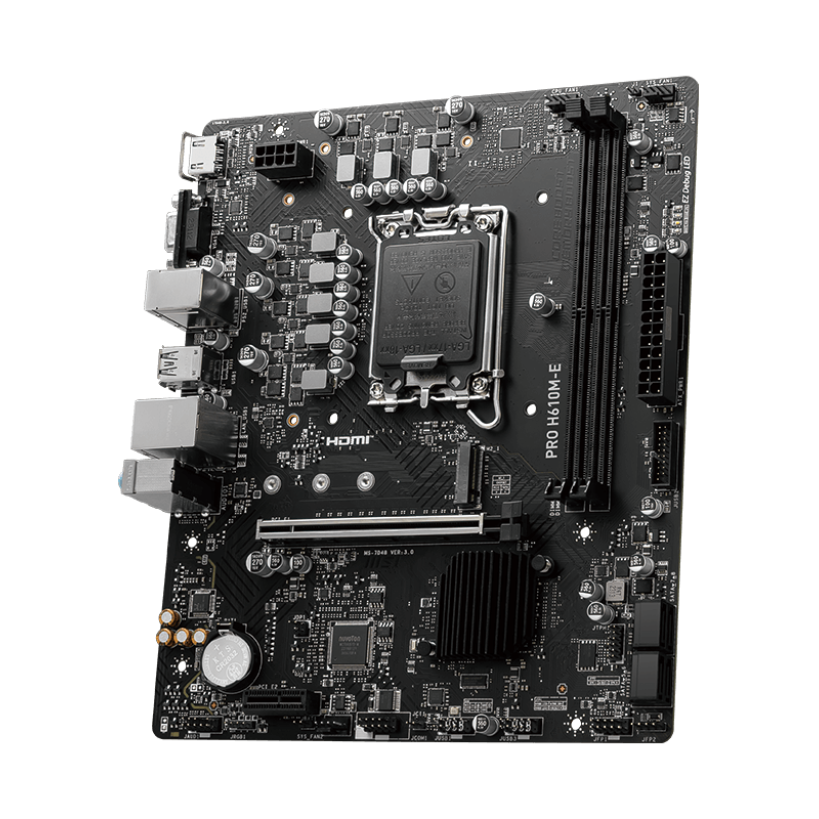

Model : PRO H610M-E
Form Factor : Mirco-ATX Form Factor (9.3 in. x 7.9 in. / 23.6 cm x 20 cm)
CPU :
- Supports 12th/ 13th/ 14th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
- Processor socket LGA1700
*Please go to www.msi.com to get the newest support status as new processors are released.
Chipset : Intel® H610 Chipset
Onboard Graphics :
- 1 x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz * **
- 1 x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1 / 2
* Available only on processors featuring integrated graphics.
** Graphics specifications may vary depending on the CPU installed.
Audio :
- Realtek® ALC897 Codec
- 7.1-Channel High Definition Audio
Ethernet :
- 1 x Realtek® RTL8111H 1Gbps LAN controller
Storage Interface :
- 4x SATA 6Gb/s ports (From H610 chipset)
- 1x M.2 slot (Key M) (from CPU) * **
* Supports up to PCIe 3.0 x4
** Supports 2242/ 2260/ 2280 storage devices
Expansion Slots :
- 1x PCIe x16 slot (From CPU)*
* Supports up to PCIe 4.0 x16
- 1x PCIe x1 slot (From H610 chipset)**
** Supports PCIe 3.0 x1
Memory :
- 2 x DDR5 memory slots, support up to 96GB*
- Memory Support DDR5 5600 MHz (by JEDEC & POR)
- Supports Intel® XMP 3.0 OC
- Supports Dual-Controller Dual-Channel mode
- Supports non-ECC, un-buffered memory
Back I/O Ports:
- HDMI™
- VGA
- Keyboard / Mouse
- USB 3.2 Gen 1 5Gbps (Type-A)
- LAN port
- Audio Connectors
- USB 2.0
-Internal I/O Connectors-
1 x Power Connector(ATX_PWR)
1 x Power Connector(CPU_PWR)
1 x CPU Fan
2 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Com Port (JCOM)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports
2 x USB 5Gbps Type A ports
